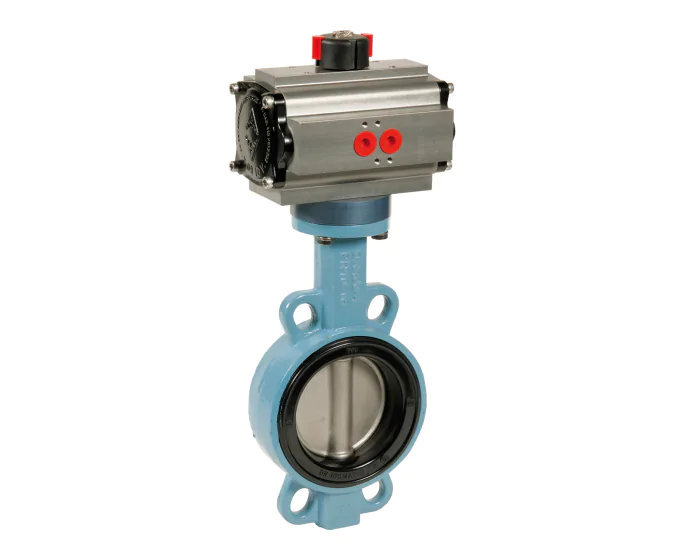

The 1147 series ductile iron butterfly valve, equipped with spring return or double acting ACTREG pneumatic actuator, features a CF8M disc, up to DN100, and disc GGG50 epoxy coated above. It is designed for mounting PN10/16 and ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Adjustable limit screws | Yes |
| Lockable | Yes |
| ATEX compatible | Yes |
| DN | DN40 - 1''1/2 |
| Seat | NBR - Carboxylated |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Ductile iron with rilsan coating |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 2 years |
| CE | Risk category III |
| Range | TTV |
| Face to Face (mm) | 33.0 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Concentric DN40 - 1''1/2 Double acting | 260563015100 | S1003255 |
€220.46
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN40 - 1''1/2 Spring return | 260563016101 | S1003256 |
€243.47
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Double acting | 260564015100 | S1003257 |
€220.46
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Spring return | 260564016101 | S1003258 |
€246.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260565015101 | S1003259 |
€264.36
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Spring return | 260565016102 | S1003260 |
€297.74
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Double acting | 260566015101 | S1003261 |
€285.36
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Spring return | 260566016102 | S1003262 |
€314.46
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Double acting | 260567015102 | S1003263 |
€311.89
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Spring return | 260567016103 | S1003264 |
€351.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Double acting | 260568015102 | S1003265 |
€355.37
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Spring return | 260568016104 | S1003266 |
€452.70
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Double acting | 260569015103 | S1003267 |
€432.81
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Double acting | 260570015104 | S1003268 |
€506.00
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Spring return | 260570016107 | S1003269 |
€1,092.61
(excl. btw)
|
add to cart |
